The aerospace industry keeps evolving. It needs solutions that are more efficient, cost-effective, and innovative. Traditional manufacturing methods often can’t keep up with demands for rapid prototyping, lightweight parts, and complex shapes. 3D printing, also called additive manufacturing, offers a promising answer to these challenges. It gives manufacturers a versatile and efficient way to produce aerospace components. This article looks at the many sides of 3D printing in aerospace, including its benefits, its uses, and the details involved in putting it to work.
Quick Fix Summary Table
| Challenge | Traditional Approach | 3D Printing Solution | Benefit | Impact on Aerospace |
|---|---|---|---|---|
| High Production Costs | Expensive tooling and labor | Reduced tooling needs | Cost savings | More affordable components |
| Long Lead Times | Lengthy setup and production cycles | Rapid prototyping | Faster turnaround | Accelerated innovation |
| Complex Geometries | Limited by machining capabilities | Geometric freedom | Design flexibility | Enhanced component performance |
| Material Waste | Subtractive manufacturing processes | Additive manufacturing | Reduced waste | Sustainable production |
| Limited Customization | Standardized parts | Customization options | Tailored solutions | Improved functionality |
3D Printing Benefits
3D printing offers many advantages over traditional manufacturing methods, particularly in the aerospace sector. It can produce complex shapes without needing specialized tooling, and that’s a game-changer. This design freedom lets engineers make parts that are lighter and stronger. That improves performance while using less material.
Another major benefit is lower production costs. Traditional manufacturing often needs expensive tooling and labor-intensive processes. Additive manufacturing can cut these costs significantly. By building parts layer by layer, 3D printing uses less extra material, which leads to cost savings and a more sustainable production process.
Production speed is another key advantage. Rapid prototyping lets engineers test design changes quickly. This shortens the development cycle and speeds up validation and pre-production testing. That agility matters in an industry where getting to market first can be a major competitive edge.
Customization is also a strength of 3D printing. Manufacturers can build custom parts tailored to specific requirements, which improves function and performance. This matters especially in aerospace, where every gram and millimeter counts.
Aerospace Applications
The aerospace industry has embraced 3D printing for many uses, from prototyping to producing finished parts. One of the most common uses is building lightweight structures. Using advanced materials and innovative designs, 3D printing can make parts that stay strong while weighing much less — a critical factor in aviation and space exploration.
3D printing is also used to make complex engine parts. The technology can create intricate internal shapes that would be impossible, or far too expensive, to make with traditional methods. This leads to more efficient engines that burn less fuel and produce fewer emissions.
Beyond engines and structural parts, 3D printing also creates customized parts for cabin interiors. From seat fittings to ventilation systems, tailoring parts to specific needs improves passenger comfort and operational efficiency.
The technology is also advancing in satellite component production. The space industry benefits from lighter, more functional 3D-printed parts, which can lead to major cost savings in launch operations.
Prototyping Methods
Prototyping is a critical phase in aerospace design, and 3D printing has transformed this stage. Making prototypes quickly lets engineers test and refine designs fast, which leads to more efficient development cycles.
There are several methods for prototyping using 3D printing, and each has its own strengths. Stereolithography (SLA) is known for high precision and a smooth surface finish, so it’s ideal for detailed models. Selective Laser Sintering (SLS) can produce durable, functional prototypes without support structures, which allows more complex designs. Fused Deposition Modeling (FDM) is often used for larger prototypes because it’s cost-effective and works with a wide range of materials.
These methods help engineers validate designs more effectively, which reduces the risk of costly errors later in production. Being able to quickly test different configurations is invaluable in an industry where innovation matters most.
Material Selection
Material selection is a crucial part of 3D printing in aerospace, since it directly affects the performance and durability of the final product. The right material depends on several factors: the intended use, environmental conditions, and mechanical requirements.
Metals like titanium, aluminum, and nickel-based superalloys are commonly used in aerospace 3D printing because of their strength-to-weight ratios and resistance to high heat. These materials work well for engine parts and structural components that must withstand extreme conditions.
Polymers and composites are also widely used, especially for non-structural components and interior parts. Advanced composites are lighter and have better mechanical properties, so they suit a wide range of applications.
Researchers are still developing new materials made specifically for 3D printing. This work could further expand what the technology can do in aerospace.
Design Optimization
Design optimization is a critical step in getting the most out of 3D printing. The technology can create complex shapes that were once impossible, letting engineers optimize designs for performance, weight, and efficiency.
Topology optimization is a widely used technique here. Engineers use algorithms to simulate and analyze how a part performs under different conditions. This helps them find areas where they can remove material without weakening the part. The result is lighter, more efficient designs that suit aerospace applications well.
Generative design is another approach that takes advantage of what 3D printing can do. Engineers enter specific design goals and constraints, and software generates multiple design options, each optimized for different criteria. This method opens the door to innovative solutions that push past the limits of traditional design.
Optimizing designs this way doesn’t just boost performance — it also saves material and cuts costs, matching the industry’s goals of efficiency and sustainability.
Production Stages
Producing 3D-printed aerospace parts involves several key steps, and each one matters for the quality and performance of the final product. The process starts with design and modeling, where engineers use CAD software to build detailed digital models of the component.
Once the design is finalized, the next stage is material preparation. This means selecting the right material and making sure it’s in the correct form for the chosen 3D printing method. Metal parts typically use metal powders, while polymers may come as filament or resin.
Next comes the actual printing, where the component is built layer by layer according to the digital model. This stage needs careful monitoring for accuracy and consistency, since any errors can weaken the part.
Post-processing is a crucial step. It involves removing support structures, finishing the surface, and applying any needed heat treatments to improve the part’s mechanical properties. This stage is essential for meeting the aerospace industry’s strict quality standards.
Finally, the component goes through rigorous testing and validation to confirm it meets all performance and safety requirements. This thorough approach ensures 3D-printed parts are reliable and ready for critical aerospace use.
Customization Options
One of the standout features of 3D printing is how much it can be customized. This matters especially in aerospace, where parts often need to meet specific requirements and constraints.
Customization can be applied to various aspects of a component, from its geometry to its material composition. Engineers can tailor designs to optimize performance for specific applications, such as improving aerodynamics or reducing weight.
Building custom parts also lets manufacturers combine multiple functions into a single piece. This can lead to more efficient designs, since it reduces the number of individual parts needed and simplifies assembly.
Customization also extends to replacement parts. In aerospace, where downtime is costly, quickly producing custom replacement parts helps aircraft return to service faster.
Geometric Freedom
Geometric freedom is one of the biggest advantages of 3D printing. It lets designers create complex shapes and structures that are difficult, or impossible, to make with traditional manufacturing.
This freedom opens the door to innovative design concepts, like lattice structures and organic shapes, which can improve the performance and efficiency of aerospace parts. These designs often produce lighter parts with better strength-to-weight ratios, helping reduce overall weight and improve fuel efficiency.
Making intricate internal shapes also opens up new possibilities for cooling channels and fluid flow, which leads to more efficient thermal management in engines and other critical systems.
Geometric freedom helps with looks as well as performance. In aerospace, where branding and passenger experience matter, being able to create visually appealing parts can improve the overall design of aircraft interiors.
Surface Finish
Surface finish matters a lot in 3D printing, especially in aerospace applications where precision and performance are critical. The quality of the surface finish can affect aerodynamic performance, friction, and wear, making it a key factor in designing and producing parts.
3D printing offers a range of surface finish options, depending on the chosen method and material. Techniques such as SLA and SLS can produce parts with smooth finishes, suitable for applications where aesthetics and precision are important.
Post-processing techniques like sanding, polishing, and coating can further improve the surface finish, helping parts meet the aerospace industry’s strict requirements. These processes are essential for reaching the level of performance and reliability the industry needs.
Achieving high-quality surface finishes with 3D printing doesn’t just improve how parts function — it also extends their lifespan and durability, matching the industry’s goals of safety and efficiency.
Support Structures
Support structures are an integral part of the 3D printing process, particularly for complex geometries and overhangs. These temporary structures provide stability during printing, ensuring that the component is built accurately and without deformation.
Designing and placing support structures takes careful thought, since they affect the overall efficiency and cost of printing. Engineers must balance the need for support against the goal of using less material and cutting post-processing time.
Advances in software and printing techniques have led to more efficient support structures. These use less material and are easier to remove. This improves overall production efficiency and also saves material and cuts costs.
In aerospace, where precision and performance matter most, managing support structures well is essential for the quality and reliability of 3D-printed parts.

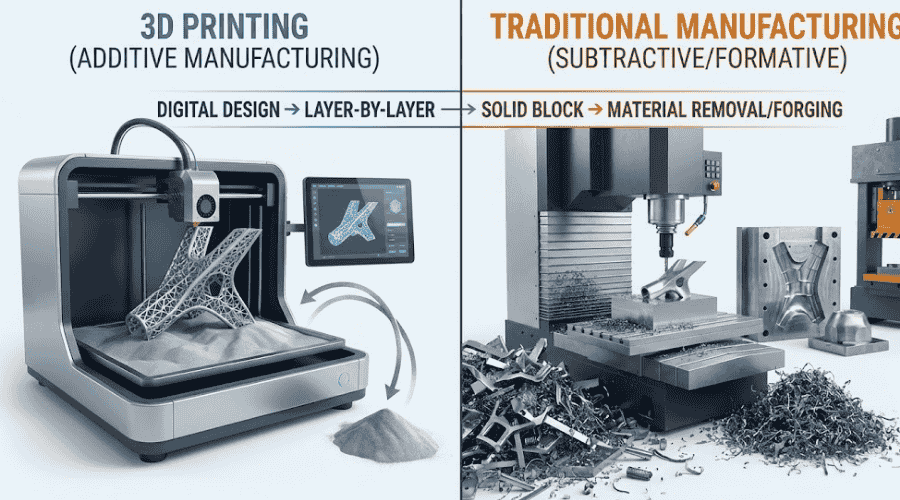

3D Printing vs Traditional Manufacturing
The comparison between 3D printing and traditional manufacturing highlights the unique advantages and limitations of each approach. Understanding these differences is crucial for making informed decisions in aerospace production.
| Aspect | 3D Printing | Traditional Manufacturing |
|---|---|---|
| Production Speed | Rapid prototyping, faster iterations | Longer setup and production times |
| Cost | Lower for small batches, reduced tooling | Higher for small batches, expensive tooling |
| Complexity | High geometric freedom, complex designs | Limited by machining capabilities |
| Material Waste | Minimal, additive process | Significant, subtractive process |
| Customization | High, tailored solutions | Limited, standardized parts |
3D printing excels where traditional methods fall short — especially in speed, cost, and complexity. Its ability to produce complex shapes and custom parts makes it a great choice for aerospace applications where innovation and efficiency matter most. However, traditional manufacturing still has advantages for large-scale production and certain material properties. That’s why picking the right approach for each specific application is so important.
Advanced Applications of 3D Printing in Aerospace
As the aerospace industry keeps embracing 3D printing, attention has shifted to using this technology for more complex and critical applications. One example is making jigs and fixtures. These tools are essential for assembly and inspection in aerospace manufacturing. With 3D printing, companies can produce these tools with better geometric precision and shorter lead times, allowing quicker iterations and adjustments.
Another innovative use of 3D printing is making surrogate parts. These are non-functional components used for testing and validation. They let engineers check fit, form, and function without expensive materials or processes. This approach saves costs and speeds up the development cycle.
Part Orientation and Mounting Brackets
Part orientation is a critical factor in 3D printing, especially in aerospace applications where precision and performance matter most. How a part is oriented during printing can significantly affect its surface finish, strength, and how much support material it needs. By optimizing part orientation, manufacturers can get better surface quality and structural integrity while wasting less material.
Mounting brackets are another area where 3D printing excels. These parts often need complex shapes and must handle significant mechanical loads. Using technologies like SLA, SLS, and DMSL, manufacturers can produce lightweight, high-strength brackets from materials such as titanium. This reduces the aircraft’s weight and improves its overall performance.
High-Detail Prototypes and Satellite Components
Making high-detail prototypes is one of the standout features of 3D printing. In aerospace, this is invaluable for visualizing complex designs and running thorough evaluations before committing to full-scale production. High-detail prototypes let engineers spot potential issues early in the design process, which reduces the risk of costly errors.
3D printing also plays a crucial role in making satellite components. The geometric freedom of additive manufacturing makes it possible to build intricate structures that traditional methods couldn’t achieve. This is especially useful for producing lightweight, high-strength parts that can withstand the harsh conditions of space.
Cost Reduction and Weight Savings
One of the primary advantages of 3D printing in aerospace is its potential for cost reduction. By consolidating multiple parts into a single printed component, manufacturers can reduce assembly time and labor costs. Additionally, the ability to produce parts on-demand eliminates the need for large inventories, further lowering expenses.
Weight savings is another significant benefit of 3D printing. By using advanced materials and optimizing designs for lightweight structures, aerospace companies can reduce the weight of their aircraft and spacecraft. This leads to improved fuel efficiency and reduced emissions, aligning with the industry’s goals for sustainability.
Performance Improvement and Material Waste Reduction
3D printing offers many opportunities for performance improvement in aerospace applications. Creating complex shapes and combining multiple functions into a single part improves the overall performance of aircraft and spacecraft. The precision of additive manufacturing also ensures parts meet strict aerospace standards.
Material waste reduction is another critical advantage of 3D printing. Traditional manufacturing methods often waste a lot of material because they cut material away. Additive manufacturing, in contrast, builds parts layer by layer, using only what the final product needs. This reduces waste and lowers material costs.
Frequently Asked Questions
Q: What materials are commonly used in aerospace 3D printing?
A: Common materials include titanium, aluminum, and high-performance polymers. These materials offer the necessary strength, durability, and lightweight properties required for aerospace applications.
Q: How does 3D printing contribute to weight savings in aerospace?
A: By allowing for complex, optimized designs and the use of lightweight materials, 3D printing significantly reduces the weight of components, leading to improved fuel efficiency and performance.
Q: What are the benefits of using 3D printing for satellite components?
A: 3D printing enables the creation of intricate, lightweight structures that can withstand the extreme conditions of space, enhancing the performance and reliability of satellite components.
The Bottom Line
3D printing is transforming the aerospace industry with unprecedented opportunities for innovation and efficiency. From cutting costs and material waste to boosting performance and enabling complex designs, the benefits are clear. If you want to explore this technology further, resources such as the “Guide to 3D Printing Technologies,” “Introduction to Additive Manufacturing,” and “Designing for 3D Printing” offer valuable insights and guidance. As the industry keeps evolving, 3D printing will play a key role in shaping the future of aerospace manufacturing.
